SmartGen Cloud Monitoring
Technical Note
SmartGen CMM366A modules connect to SmartGen controllers via RS485, RS232, LINK, or USB. Choose the module that matches your site connectivity: Ethernet for fixed installations, WiFi where wireless LAN is available, or 4G for remote sites.

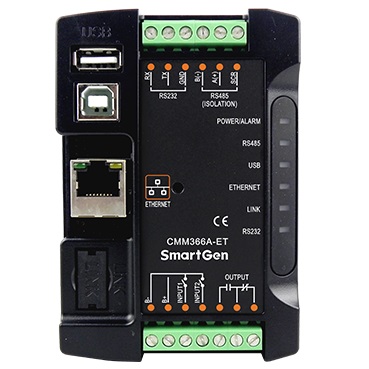

CMM366A-ET
- Wired Ethernet Monitoring
- Cloud App (iOS & Android)
- 2 Digital Inputs / 1 Relay Output
- RS485, RS232, LINK & USB

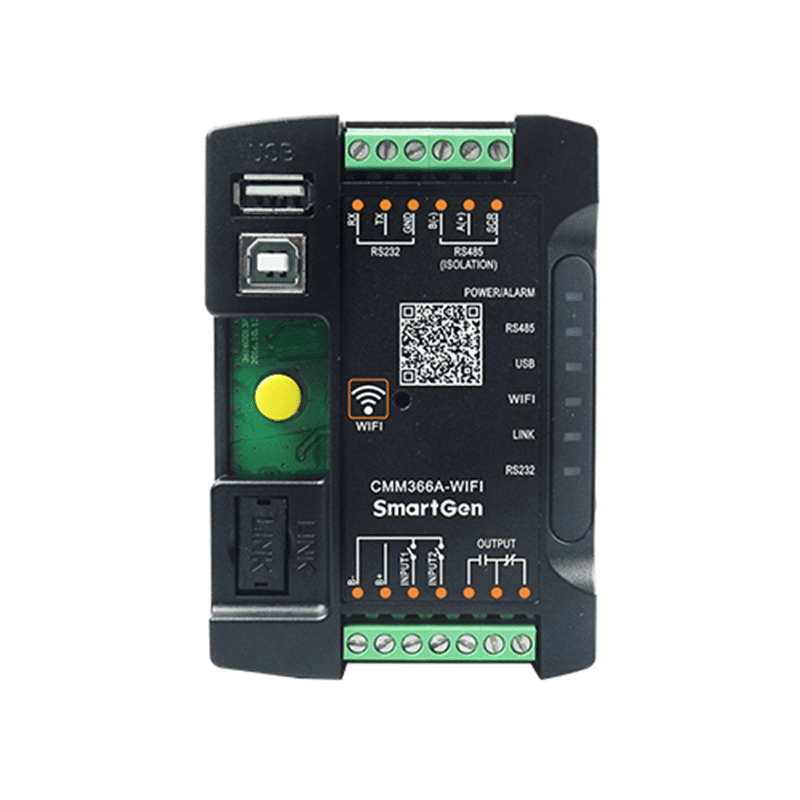

CMM366A-WIFI
- WiFi Cloud Monitoring
- Cloud App (iOS & Android)
- Immediate Alarm Upload
- RS485, RS232, LINK & USB

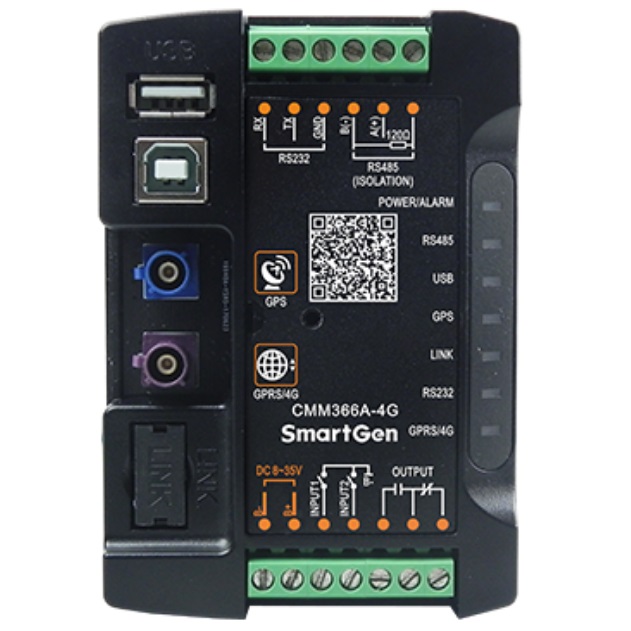

CMM366A-4G
- 4G Cloud Monitoring
- GPS Location Tracking
- Immediate Alarm Upload
- RS485, RS232, LINK & USB
System Capabilities
CMM366A Series — 35 mm DIN Rail Mount
- Online Monitoring: Real-time genset status, event history, and running records via cloud app or PC browser.
- SmartGen Compatibility: Communicates with SmartGen controllers via RS485, RS232, LINK, or USB.
- Auxiliary I/O: Two digital inputs and one relay output for room security, fire, or theft monitoring alongside genset data.
- Power Supply: DC 8–35 V from the genset starter battery. Compact ABS housing (73 × 105 × 35 mm) for control-panel mounting.
All CMM366A modules use JSON network protocols with data compression to minimise mobile data usage. Alarm conditions trigger immediate uploads to the cloud server. Parameters can be adjusted locally via the USB port, and front-panel LEDs show power and communication status at a glance.
SmartGen cloud monitoring requires an active internet connection at the installation site (Ethernet, WiFi, or 4G). Contact our team for controller compatibility checks and module selection advice.
Not sure which CMM366A module suits your installation? We can match the right connectivity option to your controller and site conditions.
Quote CMM366A-ET Quote CMM366A-WIFI Quote CMM366A-4G SmartGen ControllersHardware Supply & Platform Disclaimer
Bundu Power only supplies and fits the hardware. We do not supply SIM cards and we do not run the cloud platforms. These are run by their respective brands and there is no guarantee of uptime. All platform support is provided directly by the respective brands.
